• Small and powerful energy saver gives high quality light, with compact design

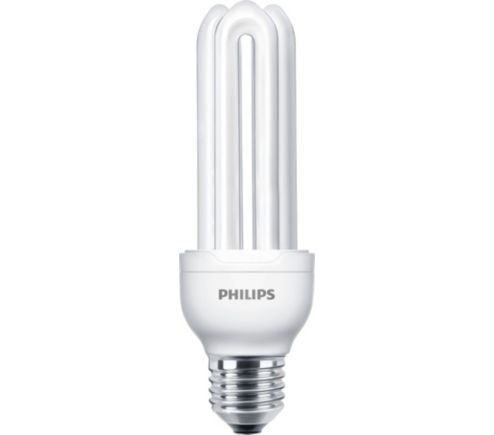

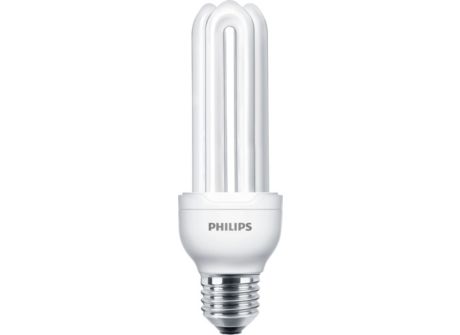

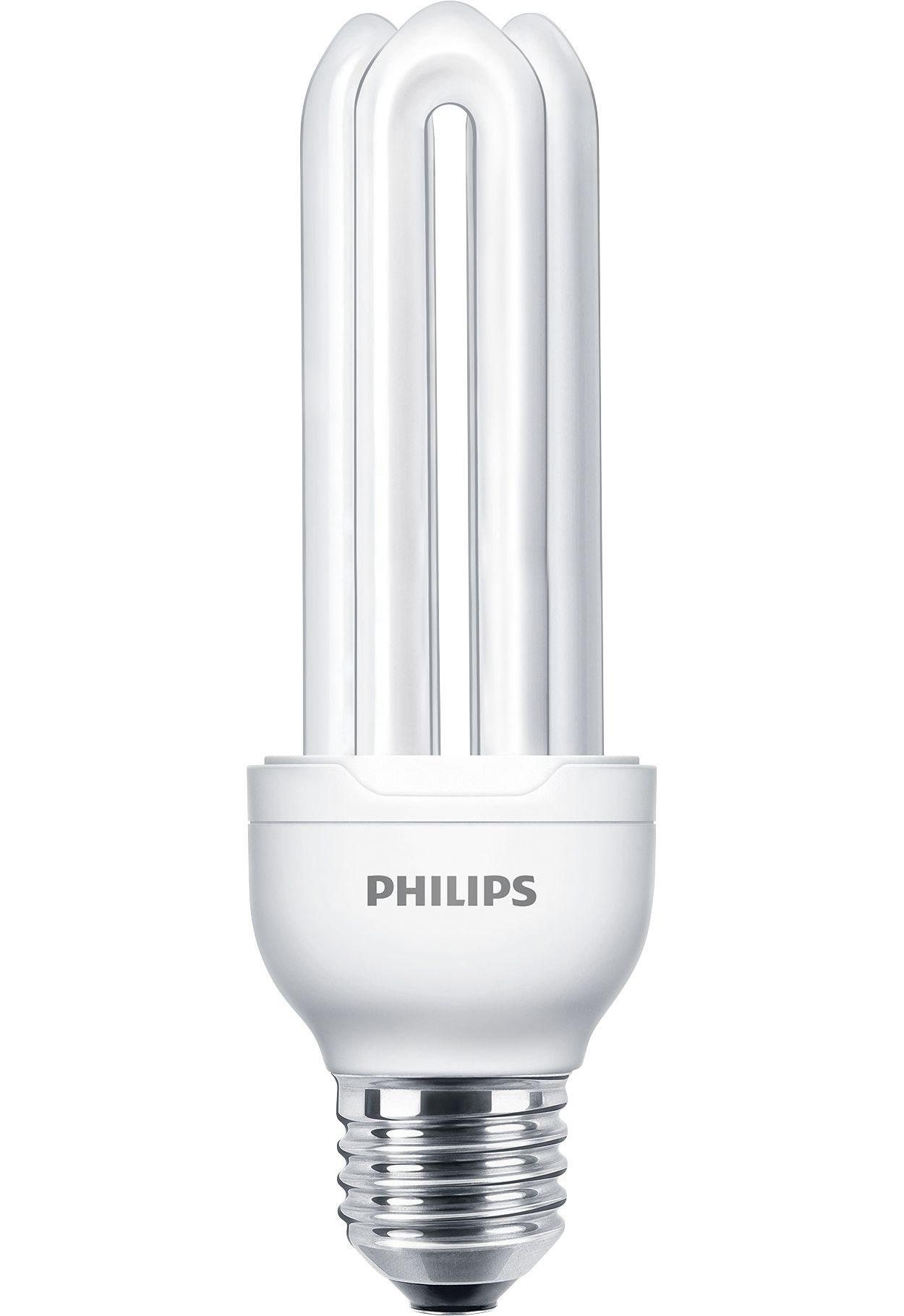

    Genie 23W WW E27 220-240V 1PF/6

    Genie 23W WW E27 220-240V 1PF/6

    Full Product Code: 872790089713501

    Order code: 89713501

    Downloads

    Leaflet
    Size:220.9 kB
    Leaflet
    Size:220.9 kB

    See all downloads

Видеоклипове

[trigger to render Video Gallery]

Изображения

Specifications Show all

General Information
Cap-Base
E27  [ E27]
Nominal Lifetime (Nom)
10000 h
Switching Cycle
10000X
Light Technical
Colour Code
827  [ CCT of 2700K]
Luminous Flux (Nom)
1450 lm
Luminous Flux (Rated) (Nom)
1450 lm
Colour Designation
Warm White (WW)
Lumen Maintenance 2000 h (Nom)
88 %
Chromaticity Coordinate X (Nom)
463
Chromaticity Coordinate Y (Nom)
420
Colour Temperature, horizontal (Nom)
2700 K
Luminous Efficacy (rated) (Nom)
62 lm/W
Colour Rendering Index horiz (Nom)
80
LLMF At End Of Nominal Lifetime (Nom)
65 %
Operating and Electrical
Input Frequency
50 or 60 Hz
Power (Rated) (Nom)
23 W
Lamp Current (Nom)
165 mA
Wattage Equivalent
103 W
Starting Time (Nom)
0.3 s
Warm Up Time To 60% Light (Min)
5 s
Warm Up Time To 60% Light (Max)
40 s
Power Factor (Nom)
0.6
Voltage (Nom)
220-240 V
Controls and Dimming
Dimmable
No
Approval and Application
Energy Efficiency Label
A
Mercury (Hg) Content (Max)
2 mg
Mercury (Hg) Content (Nom)
1.5 mg
Energy Consumption kWh/1000 h
23 kWh
Product Data
Full product code
872790089713501
Order product name
Genie 23W WW E27 220-240V 1PF/6
EAN/UPC - Product
8727900897135
Order code
89713501
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
6
Material Nr. (12NC)
929689243901
Net Weight (Piece)
0.090 kg
Installation Diagrams
23W, E27
23W, E27
18 W, 23 W E27
18 W, 23 W E27
E27
E27
