    • Long-lasting, reliable solution

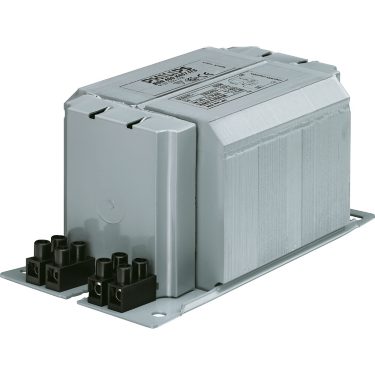

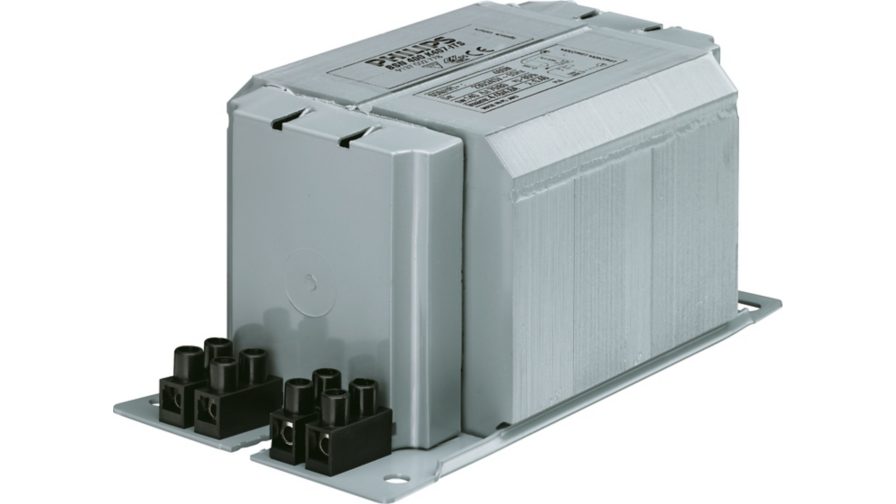

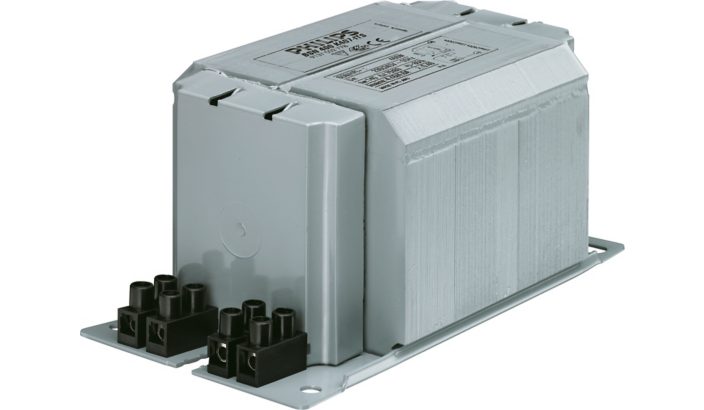

      BSN 400 K407-ITS 230/240V 50Hz BC3-166
      BSN 400 K407-ITS 230/240V 50Hz BC3-166

      BSN 400 K407-ITS 230/240V 50Hz BC3-166

      Order code: 88704400

      Full Product Code: 872790088704400

    Specifications Show all

    General Information
    Application Code
    K407-A2-ITS
    Design
    BC3-166
    Lamp Type
    SON/HPI
    Number of Lamps
    1 piece/unit
    Operating and Electrical
    Input Voltage
    230 V (default) or 240 V
    Input Frequency
    50 Hz
    Power Factor 100% Load (Nom)
    0.85
    Mains Voltage Performance (AC)
    -8%-+6%
    Mains Voltage Safety (AC)
    -10%-+10%
    Input Current with PF Correction
    2.20 A
    Input Current without PF Correction
    4.45 A
    Power Factor without PF Compensation (Nom)
    0.40
    Power Losses (Nom)
    33/34.5 W
    Wiring
    Wire Striplength
    7.0 mm
    Ballast Contact Wire Cross Section
    1.50-4.00 mm²
    Connector Type
    Screw
    System characteristics
    Capacitor
    45µF/250V
    Rated Ballast-Lamp Power
    400 W
    Recommended Ignitor
    for SON/CDO/CDM lamps ignitor SKD 578 (913700655366) or series digital SUD40 (913700193591)
    Temperature
    T-Storage (Max)
    130 °C
    T-Storage (Min)
    -30 °C
    T-Winding (Max)
    130 °C
    Delta-T Normal Conditions
    80 °C
    Approval and Application
    Active Temperature Protection
    Yes
    Approval Marks
    CE marking
    ENEC certificate
    Product Data
    Full product code
    872790088704400
    Order product name
    BSN 400 K407-A2-ITS 230/240V 50Hz BC3
    EAN/UPC - Product
    8711500881571
    Order code
    88704400
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    2
    Material Nr. (12NC)
    913700277826
    Net Weight (Piece)
    4.950 kg
    Installation Diagrams
    BSN 400 K407-A2-ITS 230/240V 50Hz BC3
    BSN 400 K407-A2-ITS 230/240V 50Hz BC3
