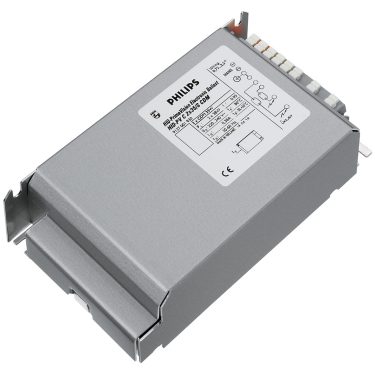

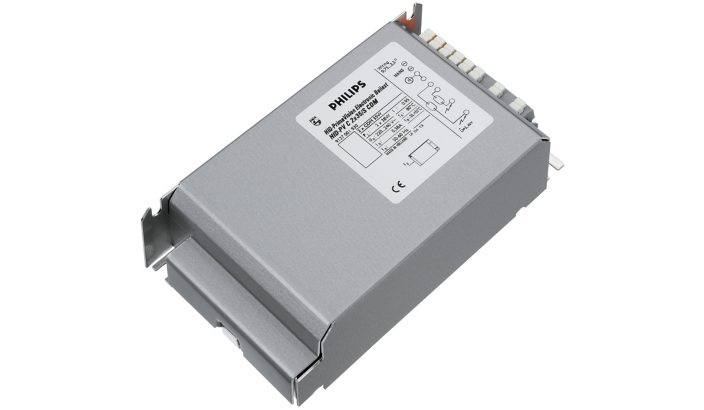

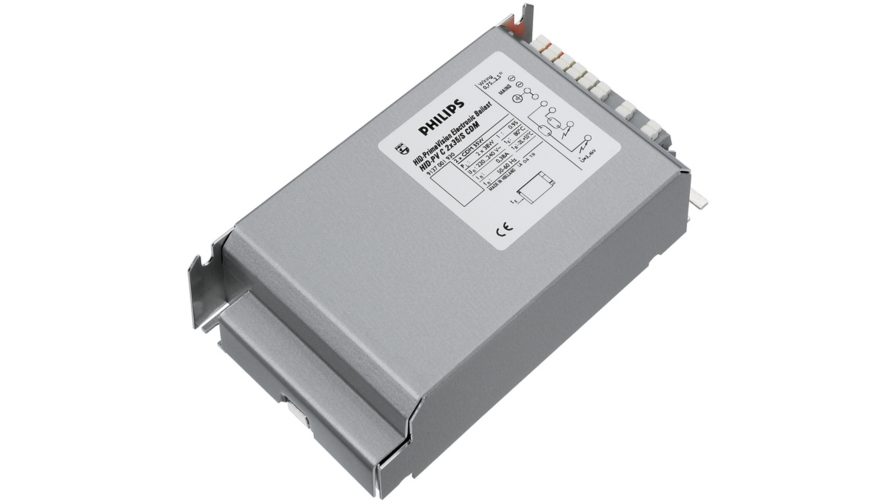

PrimaVision Twin for CDM

HID-PV C 2x35 /S CDM 220-240V 50/60Hz

HID-PV C 2x35 /S CDM 220-240V 50/60Hz

  • PrimaVision Twin (35W & 70W) for CDM - The cost-effective solution

    Product information

    Downloads

    Leaflet
    Size:733.5 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Application Code
Int. Earth Loop
Design
-
Lamp Type
CDM
Number Of Lamps
2 piece/unit
Suitable For Outdoor Use
No
Number Of Products On MCB (16A Type B) (Nom)
14
Automatic Restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Nom)
0.14 kHz
Power Factor 100% Load (Nom)
0.95
Ignition Voltage (Max)
4.5 kV
Ignition Switch-Off Time (Nom)
20 min
Mains Voltage Performance (AC)
-10%-+6%
Mains Voltage Safety (AC)
-18%-+10%
Earth Leakage Current (Max)
0.5 mA
Inrush Current Width
0.5 ms
Constant Wattage Deviation
-3%/+3%
Power Losses (Nom)
8 W
Inrush Current Peak (Max)
33 A
Wiring
Cable Capacity Output Wires Mutual (Nom)
120 pF
Wire Striplength
10.0-11.0 mm
Ballast Contact Wire Cross Section
0.50-2.50 mm²
Connector Type
Insert
System characteristics
Rated Ballast-Lamp Power
35 W
Temperature
T-Ambient (Max)
55 °C
T-Ambient (Min)
-20 °C
T-Storage (Max)
80 °C
T-Storage (Min)
-25 °C
T-Case Lifetime (Nom)
70 °C
T-Case Maximum (Max)
80 °C
Mechanical and Housing
Housing
/S
Approval and Application
Active Temperature Protection
Yes
EMI 9 kHz ... 300 MHz
CISPR 15 ed 7.2
Vibration Standard
IEC68-2-6 F c
Bumps Standard
IEC 68-2-29 Eb
Approval Marks
F-Marking
CE marking
ENEC certificate
CB Certificate
Hum And Noise Level
Inaudible
Product Data
Full product code
872790089572800
Order product name
HID-PV C 2x35 /S CDM 220-240V 50/60Hz
EAN/UPC - Product
8711500881892
Order code
89572800
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
12
Material Nr. (12NC)
913700656866
Net Weight (Piece)
0.271 kg
