    • Product Description

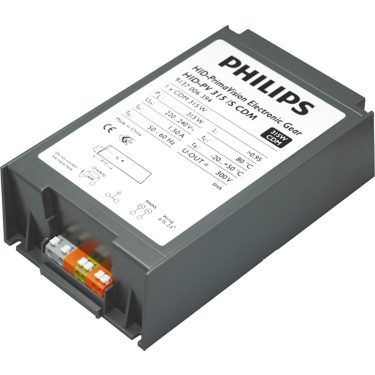

      HID-PV 315 /S CDM 220-240V 50/60Hz
      HID-PV 315 /S CDM 220-240V 50/60Hz

      HID-PV 315 /S CDM 220-240V 50/60Hz

      Order code: 84311800

      Full Product Code: 872790084311800

    Specifications Show all

    General Information
    Type Version
    mk1
    Lamp Type
    CDM
    Number of Lamps
    1 piece/unit
    Suitable For Outdoor Use
    Yes
    Number of Products on MCB (16A Type B) (Nom)
    4
    Default Lamp Selected
    CDM315
    Automatic Restart
    Yes
    Operating and Electrical
    Input Voltage
    220 to 240 V
    Input Frequency
    50 to 60 Hz
    Minimum Mains Voltage Operation (Min)
    198 V
    Operating Frequency (Nom)
    0.11 kHz
    Ignition Switch-Off Time (Nom)
    30 min
    Mains Voltage Performance (AC)
    -8%-+6%
    Mains Voltage Safety (AC)
    -10%-+10%
    Earth Leakage Current (Max)
    0.5 mA
    Output Peak Voltage (Max)
    4000 V
    Lamp Power Tolerance
    -3%/+3%
    Input Current (Nom)
    1.53 A
    Wiring
    Wire Striplength
    10.0 mm
    Ballast Contact Wire Cross Section
    0.75-2.50 mm²
    Connector Type
    Insert
    System characteristics
    Rated Ballast-Lamp Power
    315 W
    Rated Lamp Power on CDM
    315 W
    System Power on CDM
    340.5 W
    Lamp Power on CDM
    315.0 W
    Power Loss on CDM
    25.5 W
    Temperature
    T-Ambient (Max)
    55 °C
    T-Ambient (Min)
    -20 °C
    T-Storage (Max)
    80 °C
    T-Storage (Min)
    -25 °C
    T-Case Switch Off (Min)
    90 °C
    Controls and Dimming
    Programmable Lamp Settings
    -
    Pre-Set Integrated Controls
    -
    Programmable Dimming Options
    -
    Mechanical and Housing
    Housing
    /S
    Approval and Application
    IP Classification Luminaire
    34
    Overvoltage Protection 400Vac
    5 min
    Active Temperature Protection
    Yes
    Safety Standard
    EN60928, 60926
    Quality Standard
    ISO 9000:2000
    Environmental Standard
    ISO 14001
    Harmonic Current Emission Standard
    IEC 61000-3-2
    Vibration Standard
    IEC 68-2-6 Fc (10-150Hz, 2G)
    Bumps Standard
    IEC 68-2-29 Eb (10G/16ms)
    Humidity Standard
    EN 61347-2-12 clause 11
    Approval Marks
    CE marking
    ENEC certificate
    CB Certificate
    Hum And Noise Level
    37 dB(A)
    Product Data
    Full product code
    872790084311800
    Order product name
    HID-PV 315 /S CDM 220-240V 50/60Hz
    EAN/UPC - Product
    8711500880888
    Order code
    84311800
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    4
    Material Nr. (12NC)
    913700639466
    Net Weight (Piece)
    2.500 kg
    Installation Diagrams
    HID-PV 315 /S CDM 220-240V 50/60Hz
    HID-PV 315 /S CDM 220-240V 50/60Hz
