| Line Frequency | 50 to 60
Hz
|
| Inrush time | 0.208
ms
|
| Connection | Push-in connector 5-pole
|
| Power Factor (Fraction) | 0.9
|
| Input Voltage | 220 to 240
V
|
| Cable | -
|
| Inrush current | 25.6
A
|
| Number of products on MCB of 16 A type B | 25
|
| Initial CLO power consumption | -
W
|
| Input Frequency | 50 to 60
Hz
|
| Control gear failure rate at median useful life 50000 h | 10
%
|
| Lumen maintenance at median useful life* 50000 h | 80
|
| Full product code | 871869997325400
|
| Numerator - Packs per outer box | 1
|

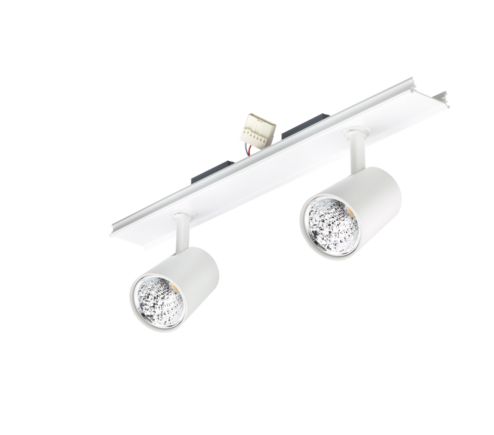

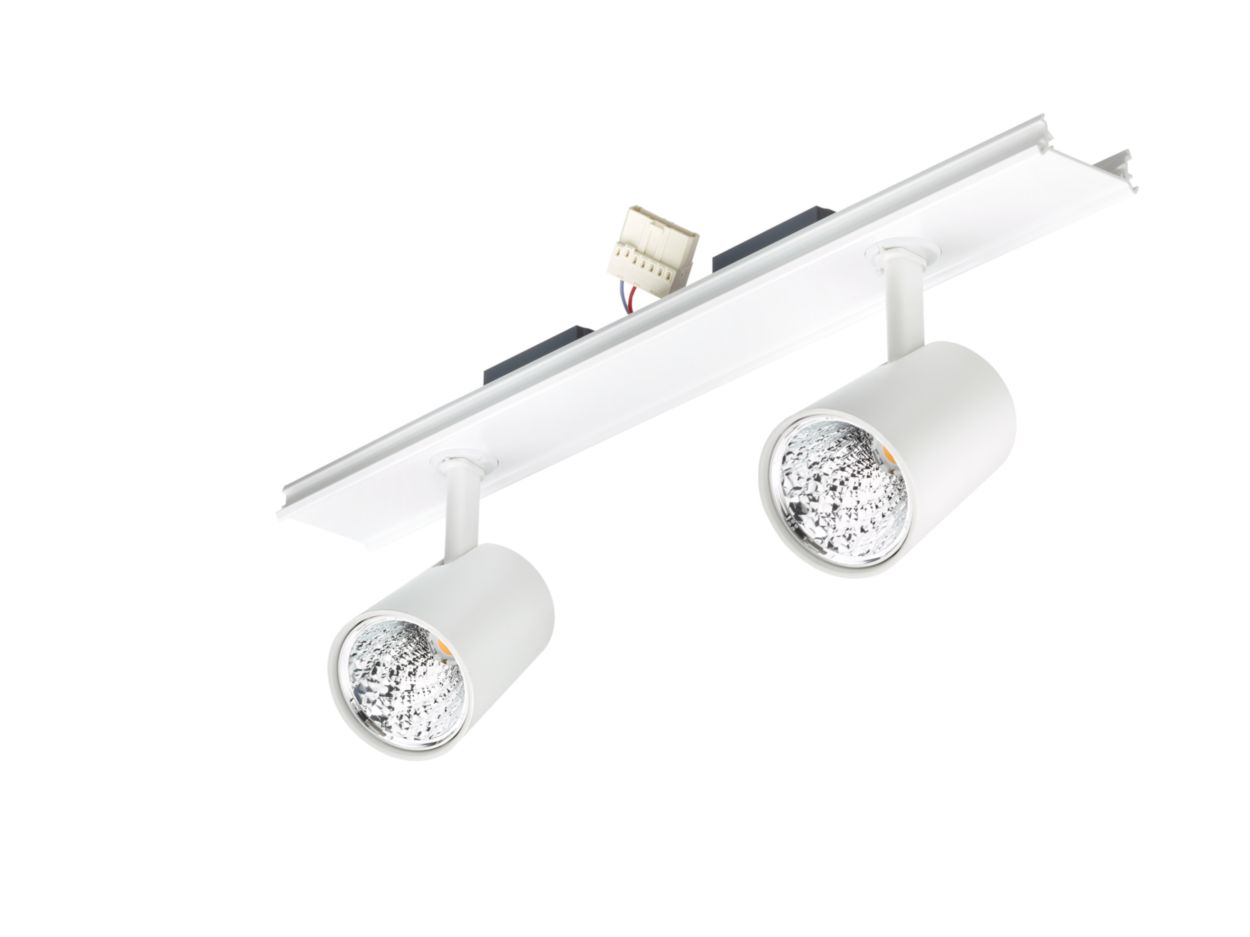

| Full product name | ST210Y LED27S/PW930 PSU MB WH
|
| Order code | 97325400
|
| Numerator - Quantity Per Pack | 1
|
| EAN/UPC - Case | 8718699973254
|
| Material number (12NC) | 910505101178
|
| Order product name | ST210Y LED27S/PW930 PSU MB WH
|
| Sustainability rating | -
|
| ENEC mark | ENEC mark
|
| CE mark | Yes
|
| EU RoHS compliant | Yes
|
| Photobiological risk | Photobiological risk group 1 @200mm to EN62778
|
| Mech. impact protection code | IK02
[0.2 J standard] |
| Flammability mark | -
|
| Ingress protection code | IP20
[Finger-protected] |
| Warranty period | 5 years
|
| Protection class IEC | Safety class II
|
| Glow-wire test | Temperature 650 °C, duration 30 s
|
| Constant light output | No
|
| Control interface | -
|
| Dimmable | No
|
| Driver/power unit/transformer | Power supply unit (ON/OFF)
|
| Number of gear units | 2 units
|
| Product family code | ST210Y
[ST210Y StoreFit CL trunk gen2] |
| Driver included | Yes
|
| Light source replaceable | No
|
| Value ladder | Value
|
| Lighting Technology | LED
|
| Dimensions (Height x Width x Depth) | 167 x 69 x 565 mm
|
| Overall length | 565
mm
|
| Housing Color | White
|
| Housing Material | Aluminum
|
| Optical cover/lens material | -
|
| Optical cover/lens finish | -
|
| Fixation material | -
|
| Optic material | -
|
| Overall width | 69
mm
|
| Reflector material | Aluminum
|
| Overall height | 167
mm
|
| Initial chromaticity | (0.422, 0.386) SDCM <2
|
| Luminous flux tolerance | +/-10%
|
| Power consumption tolerance | +/-5%
|
| Suitable for random switching | Not applicable
|
| Performance ambient temperature Tq | 25 °C
|
| Maximum dim level | Not applicable
|
| Ambient temperature range | -10 to +35 °C
|
| Saturated Red (R9) | >50
|
| Unified glare rating CEN | Not applicable
|
| Luminous Flux | 2,700
lumen
|
| Beam angle of light source | 120
degree(s)
|
| Color rendering index (CRI) | ≥90
|
| Optic type | Medium-beam reflector high reflectance
|
| Correlated Color Temperature (Nom) | 3000
K
|
| Luminous Efficacy (rated) (Nom) | 123
lm/W
|
| Light source color | Premium white with CRI ≥90
|
| Luminaire light beam spread | 24°
|
