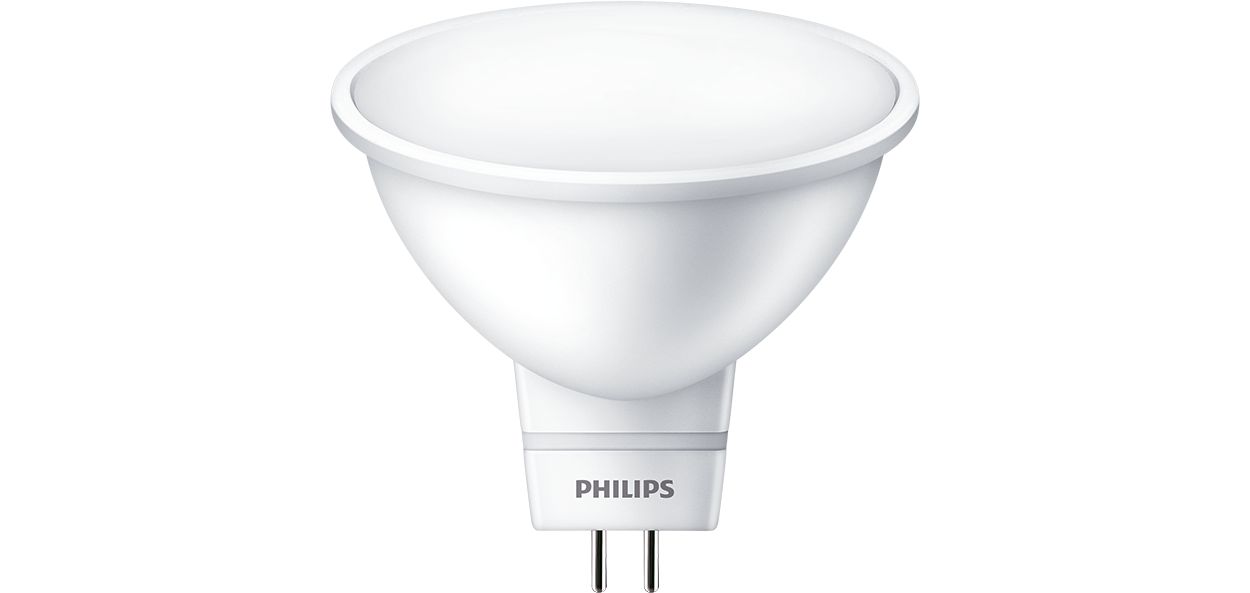

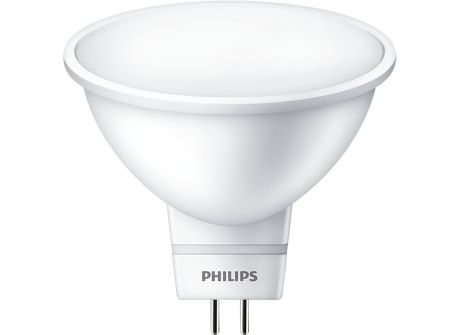

ESS LEDspot 5W 400lm GU5.3 865 220V

Specifications Show all

Operating and Electrical

Voltage (Nom)	220 V
Warm-up time to 60% light	0.5 s
Wattage Equivalent	35 W
Line Frequency	50 to 60 Hz
Starting Time (Nom)	0.5 s
Lamp Current (Nom)	42 mA
Input Frequency	50 to 60 Hz
Power Factor (Fraction)	0.5

Approval and Application

Suitable For Accent Lighting	No
EU RoHS compliant	Yes
Energy Consumption kWh/1000 h	5 kWh

Product Data

Full product code	871951430243300
EAN/UPC - Case	8719514302440
Full product name	ESS LEDspot 5W 400lm GU5.3 865 220V
Numerator - Quantity Per Pack	1
Order code	30243300
Material number (12NC)	929001844787
Numerator - Packs per outer box	10
Order product name	ESS LEDspot 5W 400lm GU5.3 865 220V

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Shape	MR16  [2inch/50mm]
Bulb Finish	Clear

General Information

Switching Cycle	50,000
Cap-Base	GU5.3  [GU5.3]
Nominal lifetime	10,000 hour(s)
Rated Lifetime (Hours)	10,000 hour(s)
Lighting Technology	LED

Temperature

T-Case Maximum (Nom)

70 °C

Light Technical

Color Designation	Cool Daylight
Luminous Flux	400 lumen
Color Code	765  [CCT of 6500K]
Color rendering index (CRI)	70
Correlated Color Temperature (Nom)	6500 K
Color Consistency	<6
Luminous Efficacy (rated) (Nom)	80.00 lm/W
Color Code	765  [CCT of 6500K]
LLMF At End Of Nominal Lifetime (Nom)	70 %
Beam Angle (Nom)	120 degree(s)
