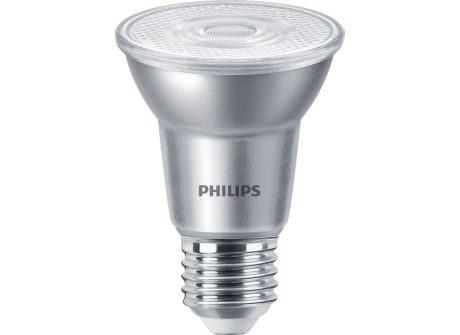

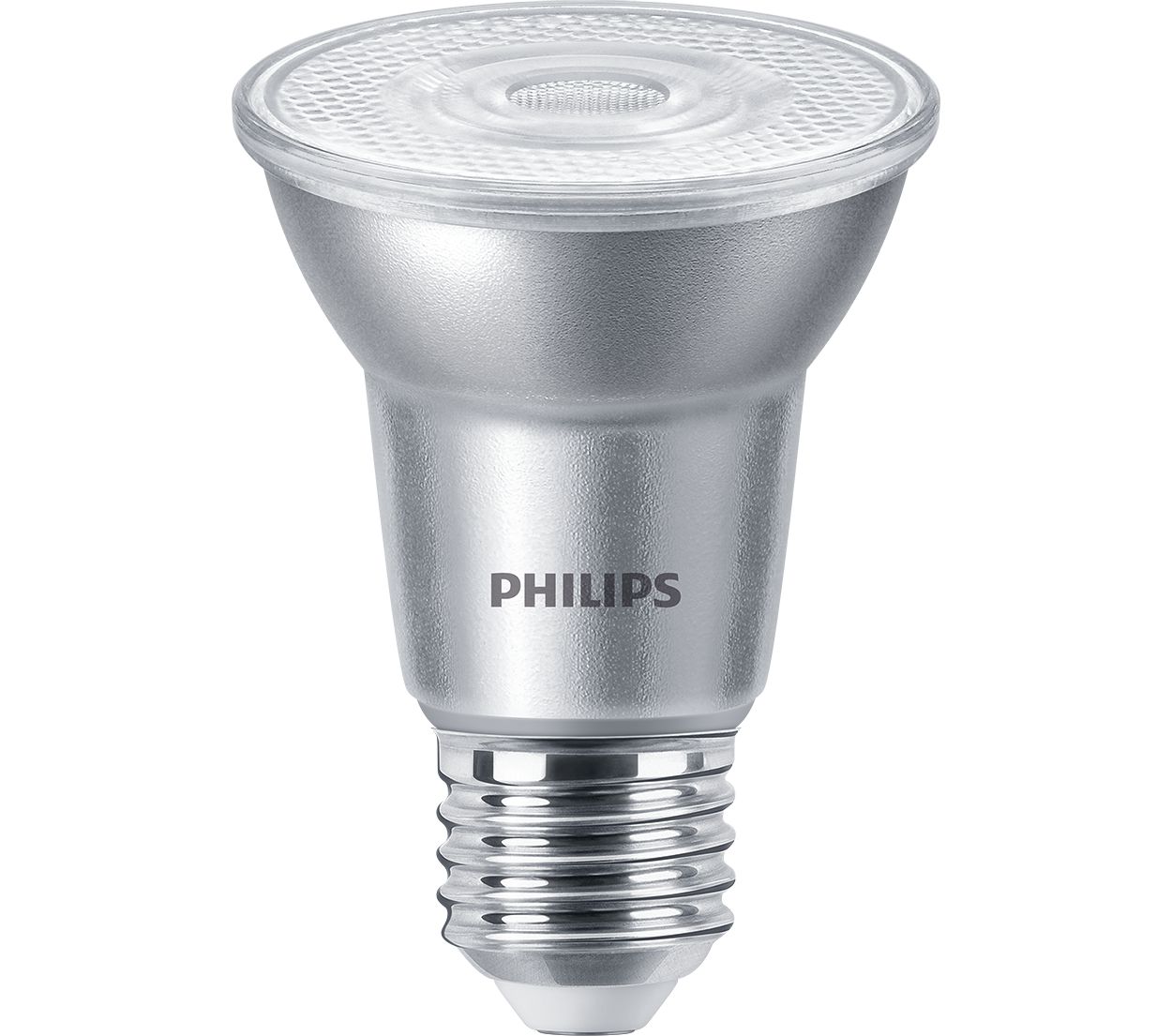

MAS LEDspot CLA D 6-50W 830 PAR20 25D

Specifications Show all

Operating and Electrical

Voltage (Nom)	220-240 V
Warm-up time to 60% light	0.5 s
Input Frequency	50 to 60 Hz
Wattage Equivalent	50 W
Line Frequency	50 to 60 Hz
Power Factor (Fraction)	0.85
Starting Time (Nom)	0.5 s
Lamp Current (Nom)	32 mA

Approval and Application

Suitable For Accent Lighting	Yes
CE mark	Yes
EU RoHS compliant	Yes
Energy Consumption kWh/1000 h	6 kWh
Energy Efficiency Class	F
EPREL Registration Number	391922

Product Data

Full product code	871869976848500
Numerator - Packs per outer box	6
Full product name	MAS LEDspot CLA D 6-50W 830 PAR20 25D
Numerator - Quantity Per Pack	1
Order code	76848500
Material number (12NC)	929002338102
Order product name	MAS LEDspot CLA D 6-50W 830 PAR20 25D
EAN/UPC - Case	8718699768492

Controls and Dimming

Dimmable

Only with specific dimmers

Mechanical and Housing

Bulb Shape

PAR20  [PAR 2.5 inch/63mm]

General Information

Cap-Base	E27  [E27]
Switching Cycle	50,000
Nominal lifetime	25,000 hour(s)
Lighting Technology	LED
Flux measurement reference	Narrow Cone

Temperature

T-Case Maximum (Nom)

60 °C

Light Technical

Color Designation	White (WH)
Luminous Flux	515 lumen
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color rendering index (CRI)	80
Beam Angle (Nom)	25 degree(s)
Correlated Color Temperature (Nom)	3000 K
Color Consistency	<6
Luminous Efficacy (rated) (Nom)	85.00 lm/W
Color Code	830  [CCT of 3000K]
Luminous Intensity (Nom)	1,500 cd
Luminous Flux in 90° Cone (Rated)	515 lumen
