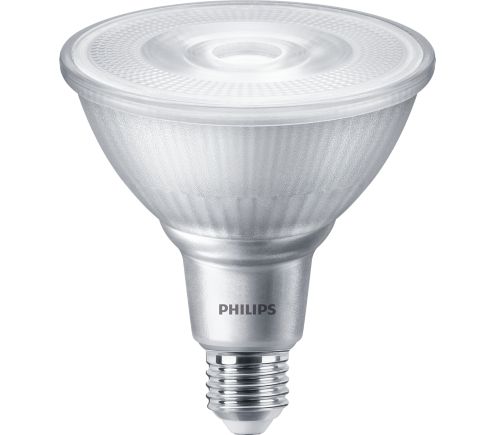

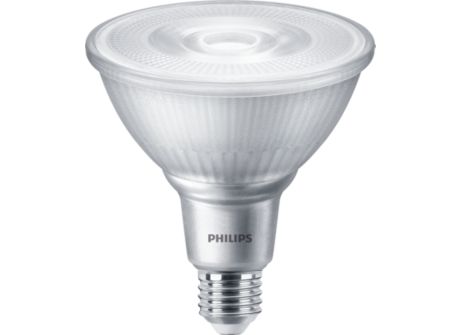

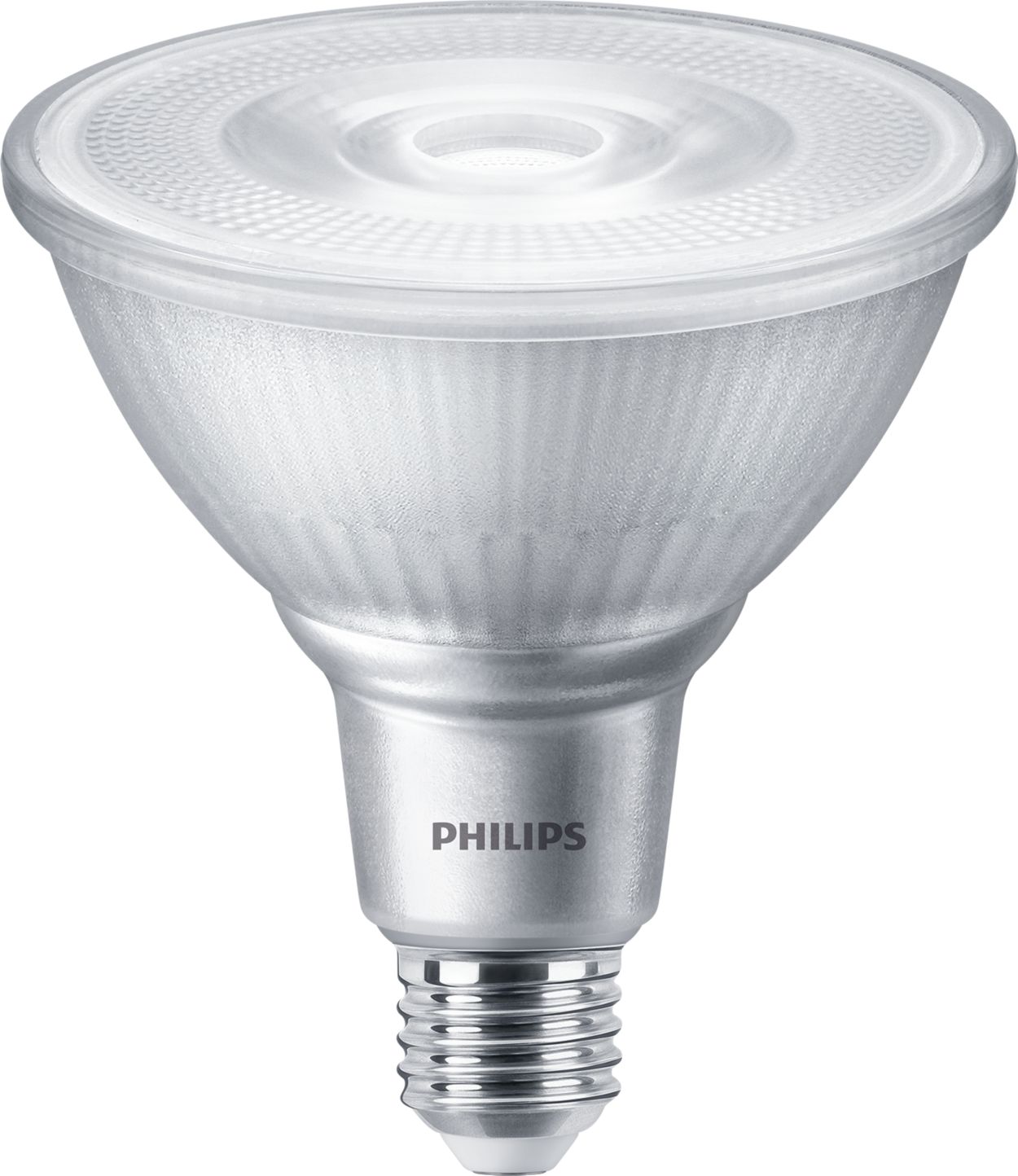

MAS LEDspot CLA D 13-100W 827 PAR38 25D

Specifications Show all

General Information

Cap-Base	E27  [ E27]
EU RoHS compliant	Yes
Nominal Lifetime (Nom)	25000 h
Switching Cycle	50000X
Technical Type	13-100W
Flux measurement reference	Narrow Cone

Light Technical

Colour Code	827  [ CCT of 2700K]
Beam Angle (Nom)	25 °
Luminous Flux (Nom)	1000 lm
Luminous Intensity (Nom)	3500 cd
Colour Designation	Warm White (WW)
Colour Temperature, horizontal (Nom)	2700 K
Luminous Efficacy (rated) (Nom)	76.00 lm/W
Color Consistency	<6
Colour Rendering Index horiz (Nom)	80
LLMF At End Of Nominal Lifetime (Nom)	70 %
Luminous Flux in 90° Cone (Rated)	1000 lm

Operating and Electrical

Input Frequency	50 to 60 Hz
Power (Rated) (Nom)	13 W
Lamp Current (Nom)	65 mA
Wattage Equivalent	100 W
Starting Time (Nom)	0.5 s
Warm Up Time to 60% Light (Nom)	0.5 s
Power Factor (Nom)	0.9
Voltage (Nom)	220-240 V

Temperature

T-Case Maximum (Nom)

75 °C

Controls and Dimming

Dimmable

Only with specific dimmers

Mechanical and Housing

Bulb Shape

PAR38  [ PAR 4.75 inch/121mm]

Approval and Application

Energy Efficiency Class	F
Suitable For Accent Lighting	Yes
Energy Consumption kWh/1000 h	13 kWh
EPREL Registration Number	391930

Product Data

Full product code	871869976870600
Order product name	MAS LEDspot CLA D 13-100W 827 PAR38 25D
EAN/UPC - Product	8718699768706
Order code	76870600
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	6
Material Nr. (12NC)	929002339002
Net Weight (Piece)	0.385 kg
