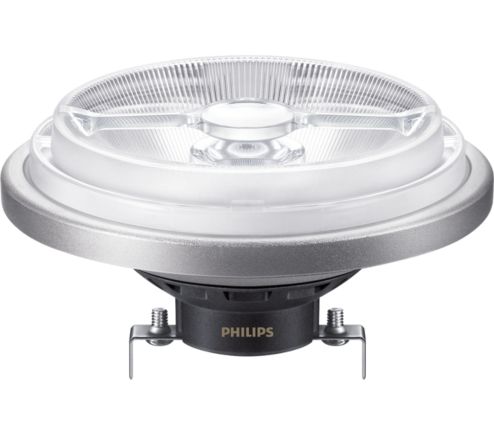

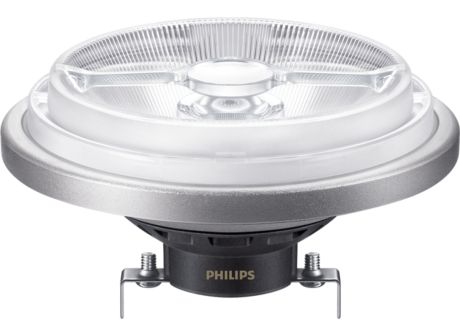

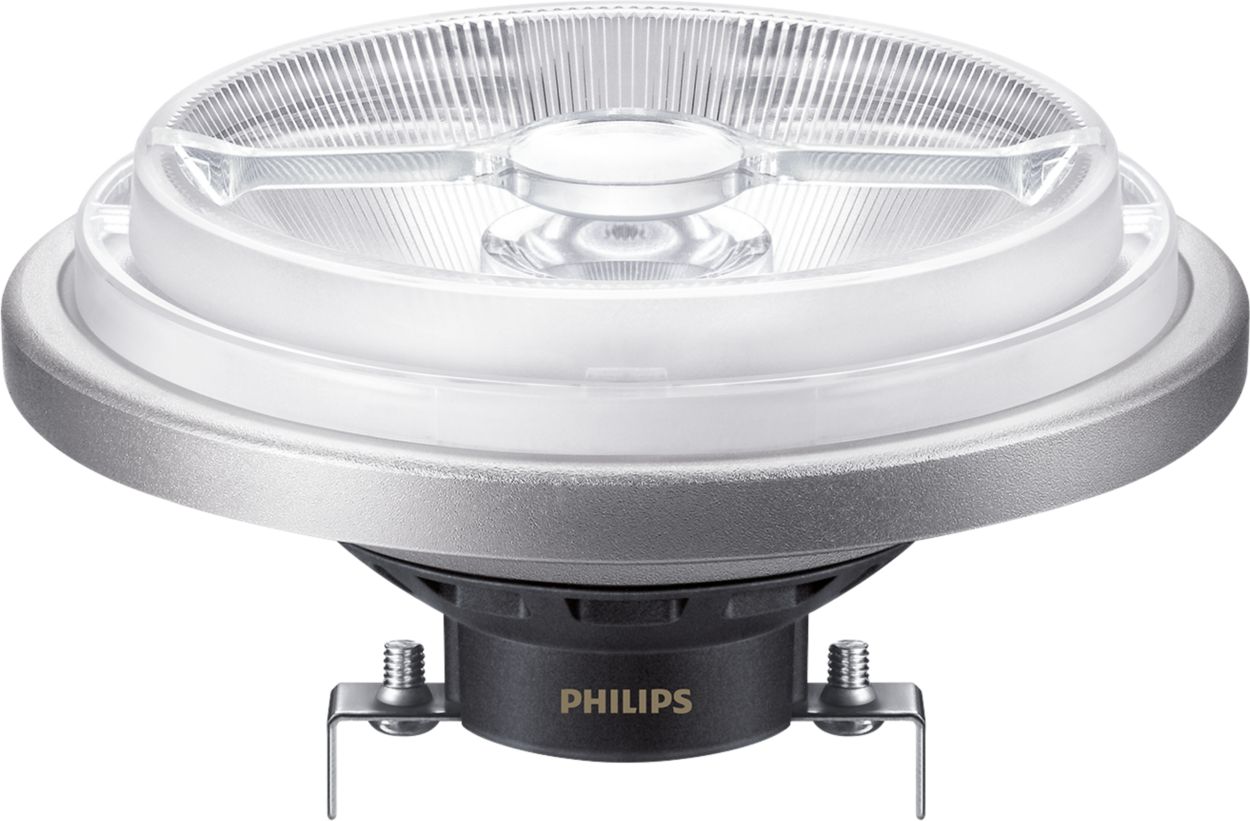

MAS ExpertColor 10.8-50W 930 AR111 9D

Specifications Show all

Operating and Electrical

Voltage (Nom)	ac electronic 12 V
Warm-up time to 60% light	0.5 s
Input Frequency	50 to 60 Hz
Wattage Equivalent	50 W
Line Frequency	50 to 60 Hz
Power Factor (Fraction)	0.7
Starting Time (Nom)	0.5 s
Lamp Current (Nom)	1,000 mA

Approval and Application

Suitable For Accent Lighting	Yes
CE mark	Yes
EU RoHS compliant	Yes
Energy Consumption kWh/1000 h	11 kWh
Energy Efficiency Class	G
EPREL Registration Number	648250

Product Data

Full product code	871951433397000
Numerator - Packs per outer box	6
EAN/UPC - Case	8719514333987
Full product name	MAS ExpertColor 10.8-50W 930 AR111 9D
Numerator - Quantity Per Pack	1
Order code	33397000
Order product name	MAS ExpertColor 10.8-50W 930 AR111 9D
Material number (12NC)	929003043502

Controls and Dimming

Dimmable

Only with specific dimmers

Mechanical and Housing

Bulb Shape	AR111
Bulb Finish	Clear

General Information

Cap-Base	G53  [G53]
Switching Cycle	50,000
Nominal lifetime	40,000 hour(s)
Lighting Technology	LED
Flux measurement reference	Narrow Cone

Temperature

T-Case Maximum (Nom)

70 °C

Light Technical

Color Designation	White (WH)
Luminous Flux	620 lumen
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color rendering index (CRI)	95
Beam Angle (Nom)	9 degree(s)
Correlated Color Temperature (Nom)	3000 K
Color Consistency	<4
Luminous Efficacy (rated) (Nom)	57.00 lm/W
Luminous Intensity (Nom)	8,000 cd
Color Code	930  [CCT of 3000K]
Luminous Flux in 90° Cone (Rated)	620 lumen
