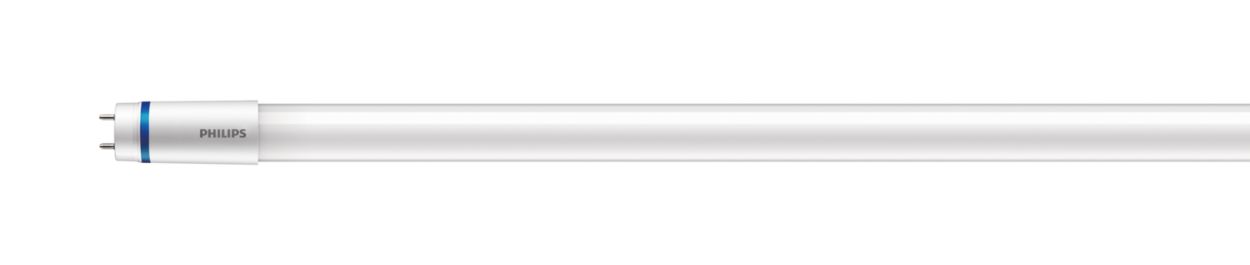

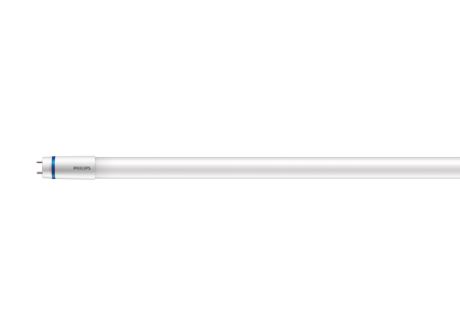

MASTER LEDtube 1500mm UO 21.7W 830 T8

Specifications Show all

Operating and Electrical

Voltage (Nom)	220-240 V
Warm-up time to 60% light	0.5 s
Input Frequency	50 to 60 Hz
Line Frequency	50 to 60 Hz
Power Factor (Fraction)	0.9
Starting Time (Nom)	0.5 s

Approval and Application

CE mark	Yes
EU RoHS compliant	Yes
Energy Consumption kWh/1000 h	22 kWh
Energy Efficiency Class	D
EPREL Registration Number	1206976
Energy Saving Product	Yes
Approval Marks	RoHS compliance	TUV	CE marking	KEMA Keur certificate

Product Data

Full product code	871951431662100
Numerator - Packs per outer box	10
EAN/UPC - Case	8719514316638
Full product name	MASTER LEDtube 1500mm UO 21.7W 830 T8
Numerator - Quantity Per Pack	1
Order code	31662100
Material number (12NC)	929002998502
Order product name	MAS LEDtube 1500mm UO 21.7W 830 T8

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Material	Plastic
Bulb Finish	Frosted
Bulb Shape	Tube, double-ended
Product Length	1,500 mm

General Information

Cap-Base	G13 ROT (Rotating)  [Medium Bi-Pin Fluorescent]
Switching Cycle	200,000
Nominal lifetime	75,000 hour(s)
Lighting Technology	LED
Flux measurement reference	Sphere

Temperature

Ambient temperature range	-20 °C to 45 °C
T-Case Maximum (Nom)	60 °C

Light Technical

Color Designation	White (WH)
Luminous Flux	3,400 lumen
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color rendering index (CRI)	80
Correlated Color Temperature (Nom)	3000 K
Color Consistency	<6
Luminous Efficacy (rated) (Nom)	156 lm/W
Beam Angle (Nom)	160 degree(s)
Color Code	830  [CCT of 3000K]
