| Application Code | III
|
| Type Version | mk1
|
| Lamp Type | TL5/PL-L
|
| Number of Lamps | 2
piece/unit
|
| Number of Products on MCB (16A Type B) (Nom) | 8
|
| Automatic Restart | Yes
|
| Input Voltage | 220 to 240
V
|
| Input Frequency | 50 to 60
Hz
|
| Operating Frequency (Nom) | 45
kHz
|
| Ignition Method | Warm Start
|
| Crestfactor (Max) | 1.7
|
| Power Factor 100% Load (Nom) | 0.99
|
| Ignition Time (Max) | 0.9
s
|
| Mains Voltage Performance (AC) | -8%-+6%
|
| Mains Voltage Safety (AC) | -10%-+10%
|
| Earth Leakage Current (Nom) | 0.5
mA
|
| Inrush Current Width | 0.38
ms
|
| Constant Wattage Deviation | -2%/+2%
|
| Ballast Factor (Nom) | 1.04
|
| Power Losses (Nom) | 9-10
W
|
| Inrush Current Peak (Max) | 35
A
|
| Efficiency at full load [%] | 95.5
%
|
| Connector Type Input Terminals | WAGO 251 universal connector
[ Suitable for both automatic wiring (ALF and ADS) and manual wiring] |
| Cable Capacity Output Wires Mutual (Nom) | 200
pF
|
| Connector Type Output Terminals | WAGO 251 universal connector
[ Suitable for both automatic wiring (ALF and ADS) and manual wiring] |
| Cable Length Hot Wiring | 0.75
m
|
| Wire Striplength | 8.0-9.0
mm
|
| Dual Fixture Master/Slave | Not applicable
[ Master/Slave oper. not applicable] |
| Input Terminal Cross Section | 0.50-1.00
mm²
|
| Output Terminal Cross Section | 0.50-1.00
mm²
|
| Cable Capacity Output Wires to Earth (Nom) | 200
pF
|
| Rated Ballast-Lamp Power | 80 W
|
| Rated Lamp Power on PL-L | 80
W
|
| System Power on PL-L | 87.5
W
|
| Lamp Power on PL-L | 80
W
|
| Power Loss on PL-L | 7.5
W
|
| Rated Lamp Power on TL5 | 80
W
|
| System Power on TL5 | 89.6
W
|
| Lamp Power on TL5 | 80
W
|
| Power Loss on TL5 | 9.6
W
|
| T-Ambient (Max) | 60
°C
|
| T-Ambient (Min) | -25
°C
|
| T-Storage (Max) | 50
°C
|
| T-Storage (Min) | -40
°C
|
| T-Case Lifetime (Nom) | 85
°C
|
| T-Case Maximum (Max) | 85
°C
|
| T-Ignition (Max) | 60
°C
|
| T-Ignition (Min) | -25
°C
|
| Housing | L 425x30x21
|
| Nominal Light Output After 60 Seconds | 100% of EBLF
|
| Battery Voltage Lamp Ignition | 186-275
V
|
| Normal Operating Voltage (DC) | 220-240
V
|
| Battery Voltage Lamp Operation | 176-275
|
| Battery Voltage Guaranteed Operation | 176-275
V
|
| Battery Voltage Guaranteed Ignition | 186-275
V
|
| Emergency Ballast Lumen Factor (EBLF) (Nom) | 100
%
|
| Nominal Light Output After 5 Seconds | 50% of EBLF
|
| Energy Efficiency Index | A2 BAT
|
||
| IP Classification | IP 20
[ Ingress Protection 20] |
||
| EMI 9 kHz ... 30 MHz | EN 55015 edition 7.1
|
||
| EMI 30 MHz ... 1000 MHz | EN55022 level B
|
||
| Safety Standard | IEC 61347-2-3
|
||
| Performance Standard | IEC 60929
|
||
| Quality Standard | ISO 9000:2000
|
||
| Environmental Standard | ISO 14001
|
||
| Harmonic Current Emission Standard | IEC 61000-3-2
|
||
| EMC Immunity Standard | IEC 61547
|
||
| Vibration Standard | IEC68-2-6 F c
|
||
| Bumps Standard | IEC 68-2-29 Eb
|
||
| Humidity Standard | EN 61347-2-3 clause 11
|
||
| Approval Marks | CE marking
|
ENEC certificate
|
VDE-EMV certificate
|
| Temperature Marking | Yes
|
||
| Emergency Standard | IEC 60598-2-22
|
||
| Hum And Noise Level | < 30 dB(A)
|
| Full product code | 872790095230800
|

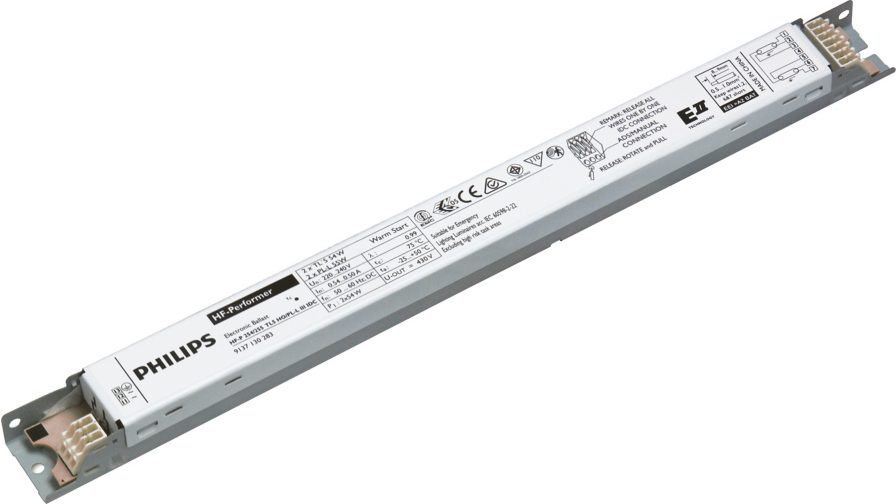

| Order product name | HF-P 280 TL5/PL-L III 220-240V 50/60Hz
|
| EAN/UPC - Product | 8727900952308
|
| Order code | 95230800
|
| Numerator - Quantity Per Pack | 1
|
| Local code description | REATOR ELETRONICO FLUOR HF-P 280 TL5III
|
| Numerator - Packs per outer box | 12
|
| Material Nr. (12NC) | 913713034366
|
| Net Weight (Piece) | 0.360
kg
|
